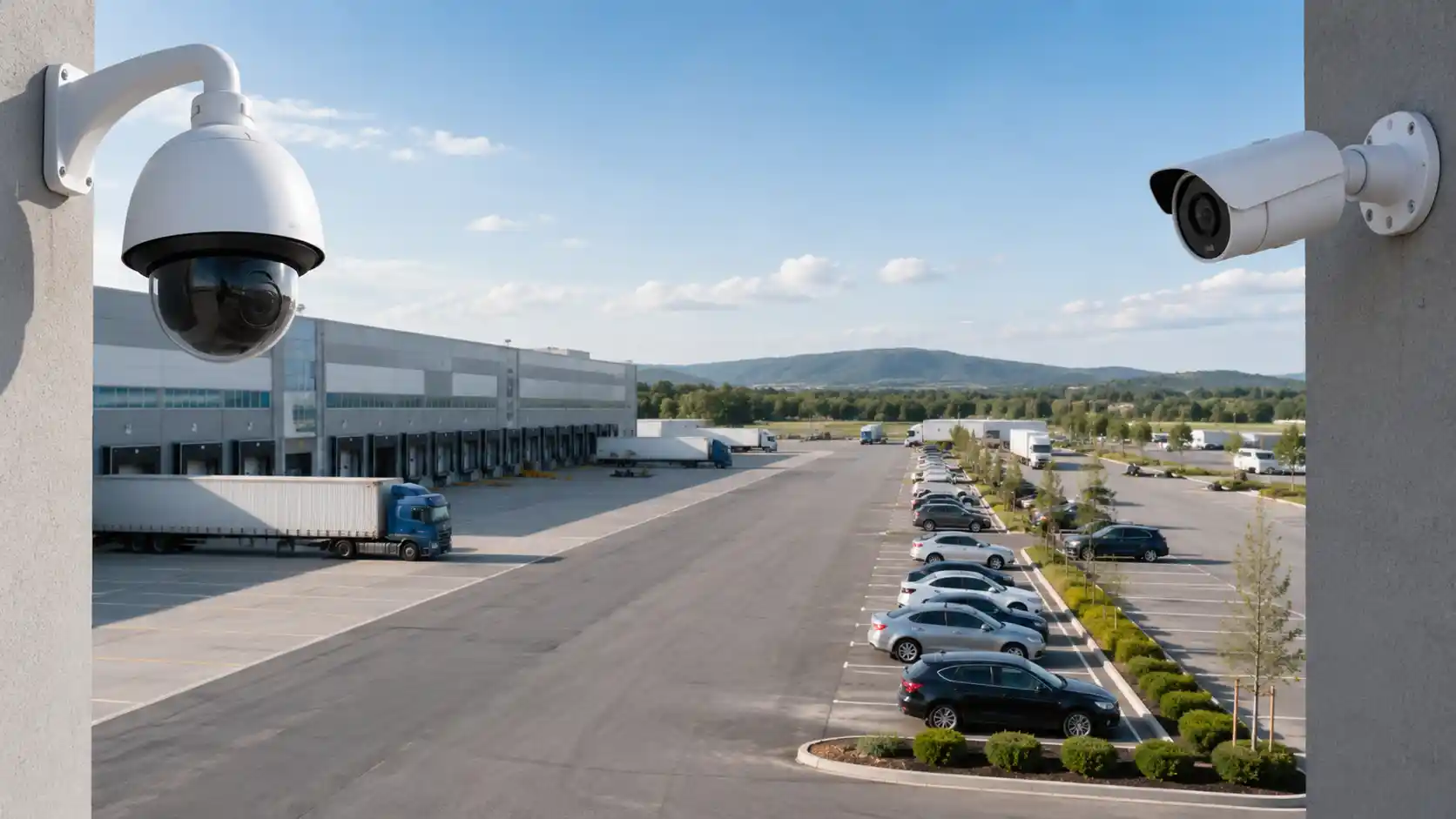

PTZ Camera vs Fixed Camera: Which Is Better for Large Areas?

Summary

“PTZ cameras can pan, tilt, and zoom across wide spaces, making them powerful tools for parking lots, warehouses, and large commercial areas. Fixed cameras lock onto a single angle, offering reliability and lower cost for corridors, entrances, and small rooms. This guide compares both types on coverage range, operator control, cost, and real-world applications.”

Most properties do not need the most expensive camera. But some spaces – open warehouses, large parking lots, school campuses – genuinely stretch the limits of what a standard fixed camera can do. That is where the question of PTZ camera vs fixed camera becomes a real decision with real cost consequences.

A fixed camera locks onto one angle and records it continuously. A PTZ camera (pan-tilt-zoom) can rotate horizontally, tilt vertically, and zoom in optically without losing image quality. Both types are part of professional CCTV systems installed across Dubai every day. But they are not interchangeable, and choosing the wrong one leads to coverage gaps, wasted budget, or both.

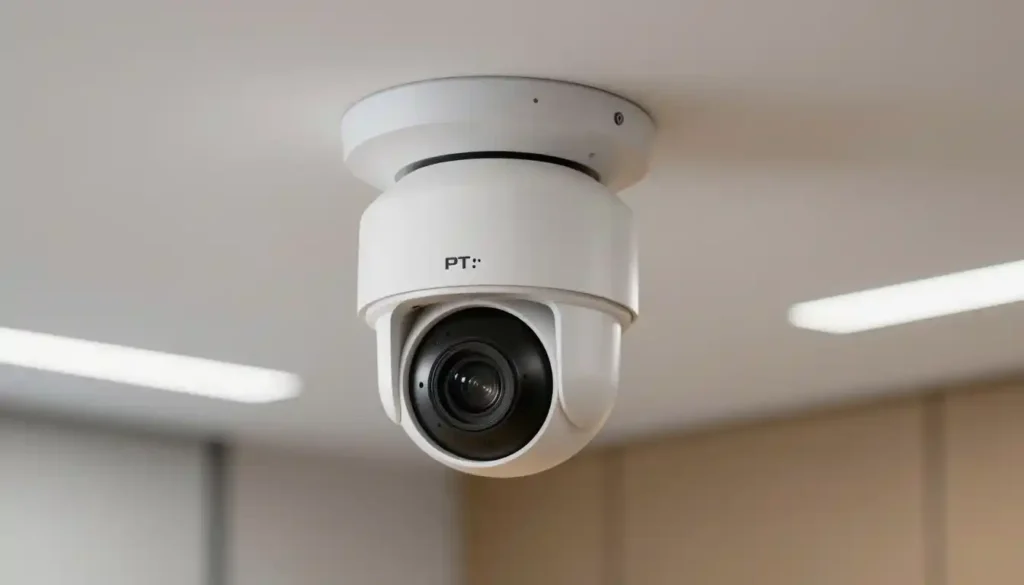

What Is a PTZ CCTV Camera?

PTZ stands for Pan, Tilt, Zoom – three independent mechanical movements built into a single camera unit:

• Pan: horizontal rotation, typically 0 to 360 degrees continuously
• Tilt: vertical movement, usually -15 to +90 degrees
• Zoom: optical lens zoom ranging from 4x to 36x on professional models

PTZ cameras are motor-driven. An operator can control the direction and zoom remotely through a joystick, software dashboard, or mobile app. More advanced models include auto-tracking, where the camera locks onto a moving subject and follows it automatically using AI-based motion detection – without any operator input.

Some PTZ cameras support preset positions, meaning the camera can be programmed to patrol between several fixed points automatically on a scheduled loop. This is common in warehouses and car parks where overnight monitoring happens without a live operator.

Speed Dome Cameras Speed dome cameras are a high-performance PTZ variant with fast motor response, typically completing a 360-degree pan in under one second. They are used in command centers, airports, and large commercial sites where rapid subject tracking is critical.

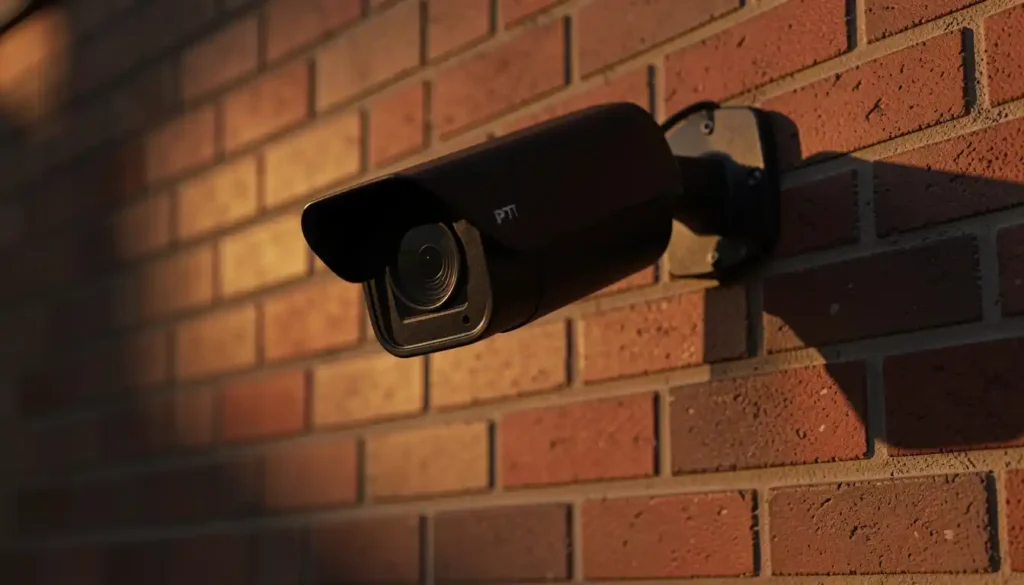

What Is a Fixed CCTV Camera?

A fixed camera has no moving parts. The lens is set to a specific focal length at installation – commonly 2.8mm for wide-angle indoor coverage, 4mm for corridors and medium-range views, or 6mm to 12mm for longer distances with a narrower field of view.

Once mounted, the camera continuously records the same angle. It cannot be redirected remotely and cannot zoom. This sounds like a limitation, but for the majority of surveillance points – entrances, counters, stairwells, ATMs, server rooms – a fixed camera delivers exactly what is needed: consistent, uninterrupted coverage of one critical zone.

Fixed cameras have no motors, no mechanical wear, and lower maintenance requirements over time. They are the standard choice for most residential and small commercial CCTV installations across Dubai and the wider UAE.

PTZ Camera vs Fixed Camera: Full Feature Comparison

The table below compares both camera types across the specifications that matter most when planning a surveillance system.

Feature	PTZ Camera	Fixed Camera
Coverage Range	Up to 360 degrees horizontal	Fixed angle – 60 to 120 degrees typical
Optical Zoom	4x to 36x optical zoom	None – fixed focal length
Auto-Tracking	Yes – AI-enabled models available	No
Moving Parts	Yes – motorized pan/tilt/zoom	None
Maintenance Frequency	Higher – motor and gear wear	Low – sealed, no moving parts
Power Requirement	24VAC or PoE+ (higher wattage)	Standard PoE (802.3af)
Cost per Unit (Dubai)	AED 600 to AED 3,000+	AED 120 to AED 500
Remote Control	Yes – joystick, app, or preset	No
Best Environment	Open areas: parking, stadiums, warehouses	Corridors, entrances, retail counters
Cameras Needed per Area	Fewer cameras cover more ground	More cameras for equivalent coverage
Recording Continuity	May miss events while panning	Records assigned zone 24/7 without gaps
Installation Complexity	Higher – requires mounting and calibration	Simple – mount and align

One point in the table above deserves emphasis: PTZ cameras can miss events while actively panning between positions. If the camera is zoomed into one corner of a warehouse and a break-in occurs at the opposite entrance, that moment is not captured until the camera rotates back. This is why PTZ cameras work best when paired with fixed cameras at critical static points.

When a PTZ Camera Is the Right Choice

PTZ cameras deliver genuine value in specific environments. Outside of these, the cost premium rarely justifies itself.

1. Large Open Parking Areas

Multi-storey car parks and outdoor parking lots in Dubai malls and commercial districts often span hundreds of meters. A single PTZ camera mounted at height can sweep the entire area, zoom in on a suspicious vehicle, and capture a license plate at 40 meters – something that would otherwise require six to eight fixed cameras plus additional cabling.

2. Warehouses and Logistics Facilities

Open-floor warehouses in Jebel Ali Free Zone or Dubai Industrial City have wide floor plans with variable activity zones. PTZ cameras on patrol presets can monitor loading docks during shift hours and switch to full-perimeter sweeps during off-hours – all from a single device.

3. School and University Campuses

Outdoor campus areas – sports fields, open courtyards, drop-off zones – benefit from PTZ coverage because activity patterns shift throughout the day. A PTZ camera can track a student incident in real time with zoom detail, something no fixed camera at that distance can match.

4. Hotels and Resorts with Open Common Areas

Hotel lobbies with large open floor plans, outdoor pool decks, and resort grounds are ideal PTZ environments. Security staff can monitor live feeds and redirect the camera manually when a situation develops, rather than reviewing footage after the fact.

5. Construction Sites

Active construction sites in Dubai change layout weekly. PTZ cameras allow security teams to redirect coverage as new structures go up, without physically remounting cameras. This flexibility reduces equipment and installation costs during the build phase.

PTZ Best-Fit Summary PTZ cameras perform best in large open spaces where no single fixed angle covers the area, where live operator monitoring is part of the security workflow, or where flexible coverage needs to adapt over time.

When a Fixed Camera Is the Right Choice

For most properties, fixed cameras are not the second-best option – they are the correct option. Here is where they consistently outperform PTZ cameras.

1. Building Entrances and Exit Points

Every entry and exit point needs continuous, uninterrupted recording. A fixed camera pointed at a door never misses a face. A PTZ camera pointed at the same door could be mid-pan when someone walks through. For access control integration, fixed cameras are the only reliable choice.

2. Retail Store Interiors and Cash Counters

Retail environments need fixed coverage of specific zones: cash registers, high-value display areas, stock rooms. These are defined locations where the camera should never move. Dome-style fixed cameras mounted on ceilings in Dubai’s retail stores and supermarkets provide this permanently.

3. Apartment Building Corridors and Stairwells

Narrow corridors and stairwells need wide-angle fixed cameras (2.8mm lens) that capture the full width of the space. There is no benefit to pan or zoom in a two-meter-wide corridor.

4. ATM Kiosks and Bank Branches

ATM surveillance requires a fixed, close-angle view of the user’s face and hands at all times. Movement from a PTZ camera would create unusable footage in a fraud investigation. Banks and financial institutions across UAE use fixed dome cameras for every ATM point.

5. Residential Villas in Dubai

For a typical Dubai villa, fixed cameras at the gate, driveway, back garden, and ground-floor windows provide complete coverage at a fraction of the cost of a PTZ system. Wiznet installs 4 to 8 fixed IP cameras for most villa projects in areas like Arabian Ranches, Jumeirah, and Mirdif.

Fixed Camera Best-Fit Summary Fixed cameras are the right choice for defined coverage points, 24/7 uninterrupted recording requirements, smaller budgets, and any location where a specific zone must never be missed, regardless of what else is happening.

Cost Comparison: PTZ vs Fixed Camera Systems in Dubai

Budget is always part of the decision. Below is a realistic cost comparison for covering a mid-size 2,000 sqm warehouse using each approach.

Cost Item	PTZ Camera System	Fixed Camera System
Cameras Required	4 PTZ cameras	12 fixed IP cameras
Camera Unit Cost	AED 1,200 to AED 2,500 each	AED 200 to AED 400 each
Camera Subtotal	AED 4,800 to AED 10,000	AED 2,400 to AED 4,800
NVR / Storage	AED 800 to AED 1,500	AED 800 to AED 1,500
Cabling and Installation	AED 1,200 to AED 2,000	AED 2,000 to AED 3,500
Total Estimated Cost	AED 6,800 to AED 13,500	AED 5,200 to AED 9,800
Coverage Gaps Risk	Medium (panning blind spots)	Low (continuous fixed zones)
Maintenance Cost (annual)	Higher – motor servicing	Low – no moving parts

The fixed camera system costs less upfront and has lower ongoing maintenance. However, for a warehouse with active security monitoring by an operator, 4 PTZ cameras offer more flexibility than 12 fixed cameras that cannot redirect. The right answer depends on whether your security model is live monitoring or recorded review.

Using PTZ and Fixed Cameras Together

The most effective large-area security systems combine both types. This is standard practice for Wiznet installations in commercial and industrial properties across Dubai.

A practical hybrid layout for a warehouse or school campus looks like this:

• Fixed cameras at every entrance, exit, and loading dock – continuous uninterrupted recording
• Fixed cameras in server rooms, manager offices, and cash handling areas
• PTZ cameras covering open floor areas, outdoor grounds, and parking zones
• PTZ cameras on corners of the perimeter where the widest sweep covers the most area

This approach gives you the reliability of fixed cameras at every critical static point, with the flexible reach of PTZ cameras covering open zones. It also means fewer total cameras than an all-fixed system while maintaining better coverage than an all-PTZ system.

Wiznet Installation Tip: Wiznet designs hybrid PTZ and fixed camera layouts based on your actual floor plan. A site survey identifies dead zones, high-risk entry points, and optimal camera mounting heights before a single cable is run.

AI Auto-Tracking PTZ Cameras: Worth It?

Modern PTZ cameras from brands like Hikvision and Dahua – both installed by Wiznet – now include AI-based auto-tracking. The camera detects motion, identifies a person or vehicle, locks onto the subject, and follows it across the frame without operator input.

This is genuinely useful for unmanned locations where no operator is watching the live feed. A PTZ camera with auto-tracking outside a closed business premises will follow an intruder automatically and keep them in frame throughout their activity.

However, auto-tracking has limitations. In crowded environments – a busy mall atrium or a busy car park – the camera can lose track of its subject or switch between multiple moving targets unpredictably. In these environments, fixed cameras combined with video analytics software perform more reliably.
